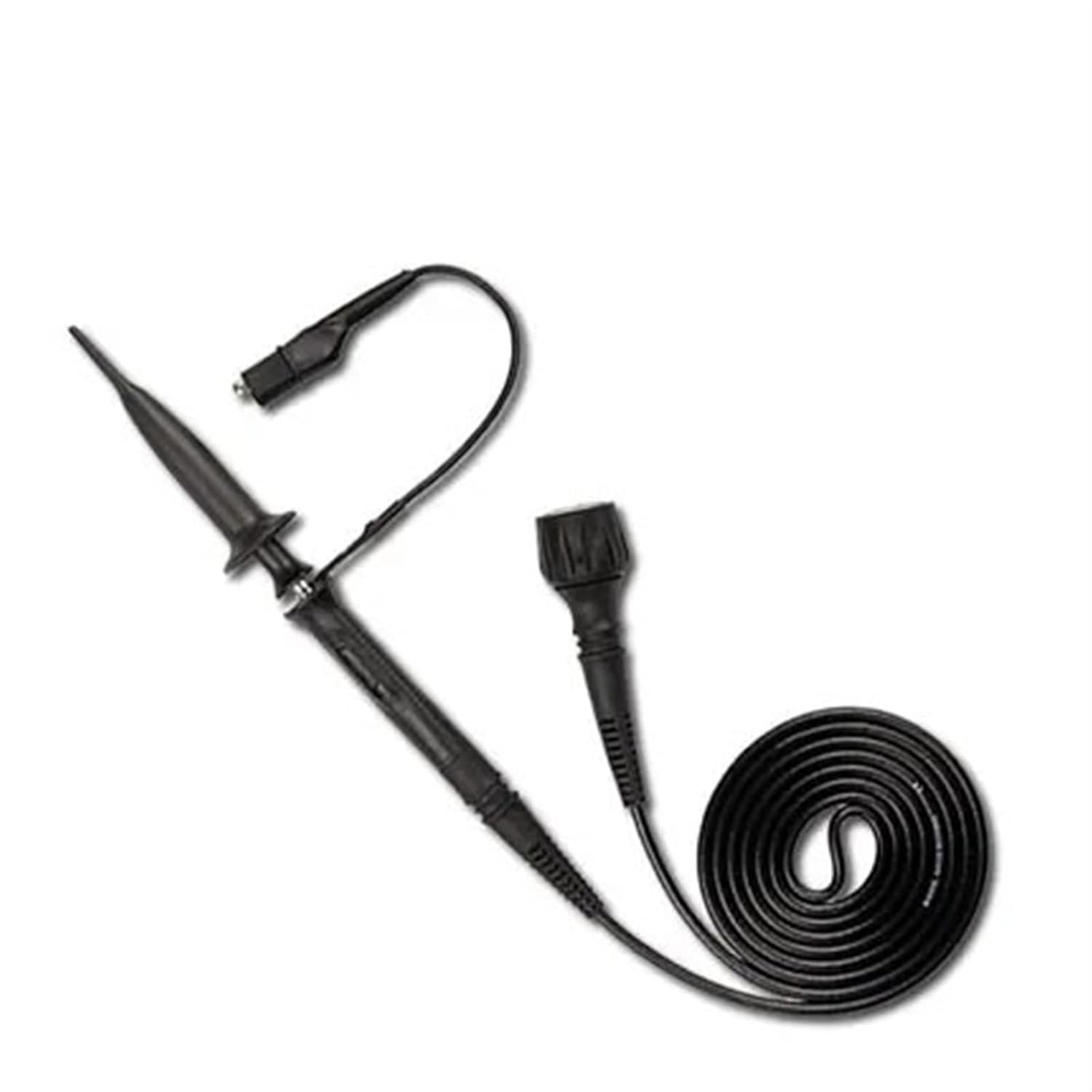

PVP2150 150 MHz Passive Probe with 1x:10x Selector. Wide Bandwidth of 35 MHz in 1x Mode.Replaces The RP2200
4.4 (55 items)
Limited Time SaleUS$59.69 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 213673514 | Release Date | 2026/04/12 | List Price | US$39.79 | Model Number | 213673514 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Multi TestersFeaturesPVP2150: 1X/35MHz, 10X/150MHz, one/two Probes Kit10X or 1X Switchable10 pF to 25 pF Compensation Range1X: 1M ±1% input resistance 50 pF ±20 pF input capacitance 150 VRMS II max. rated input voltage10X: 10M ±1% input resistance 10pF ±5pF input capacitance 300 VRMS II max. rated input voltage Design in appearance brings you perfect user experienSpecificationsRigol PVP2150 SpecificationsElectrical SpecificationsBandwidth1X: DC to 35 MHz10X: DC to 150 MHzInput Resistance1X: 1 M ± 1% @ DC10X: 10 M ± 1% @ DCRise Time1X: 10 ns10X: 2.3 nsInput Capacitance1X: 50 pF ± 20 pF10X: 10 pF ± 5 pFAttenuation Ratio10:1 or 1:1SwitchableMax. Rated Input Voltage1X: 150 V RMSCAT II10X: 300 V RMSCAT IICompensation Range10 pF to 25 pFMechanical CharacteristicsWeight (probe only)About 40 gCable Length120 ± 2 cmProbe Tip Diameter4.6 mmEnvironmental SpecificationsTemperatureOperating: 0°C to +50°CNonoperating: -20°C to +70°CAltitudeOperating: 2,000 mNonoperating: 15,000 mMax. Relative Humidity80% relative humidity for temperature up to +31°C, decreasing linearly to 40% relative humidity at +50°CPollution DegreePollution Degree 2RPVP2150 Passive Probe
- Multi Testers
| Color | One Color |
|---|---|
| Model | FKDEhuLZ |
| Brand Name | FKDEhuLZ |
| Style Name | One Style |
| Manufacturer | FKDEhuLZ |
| Power Source | Battery Powered |
| Specification Met | UL |
