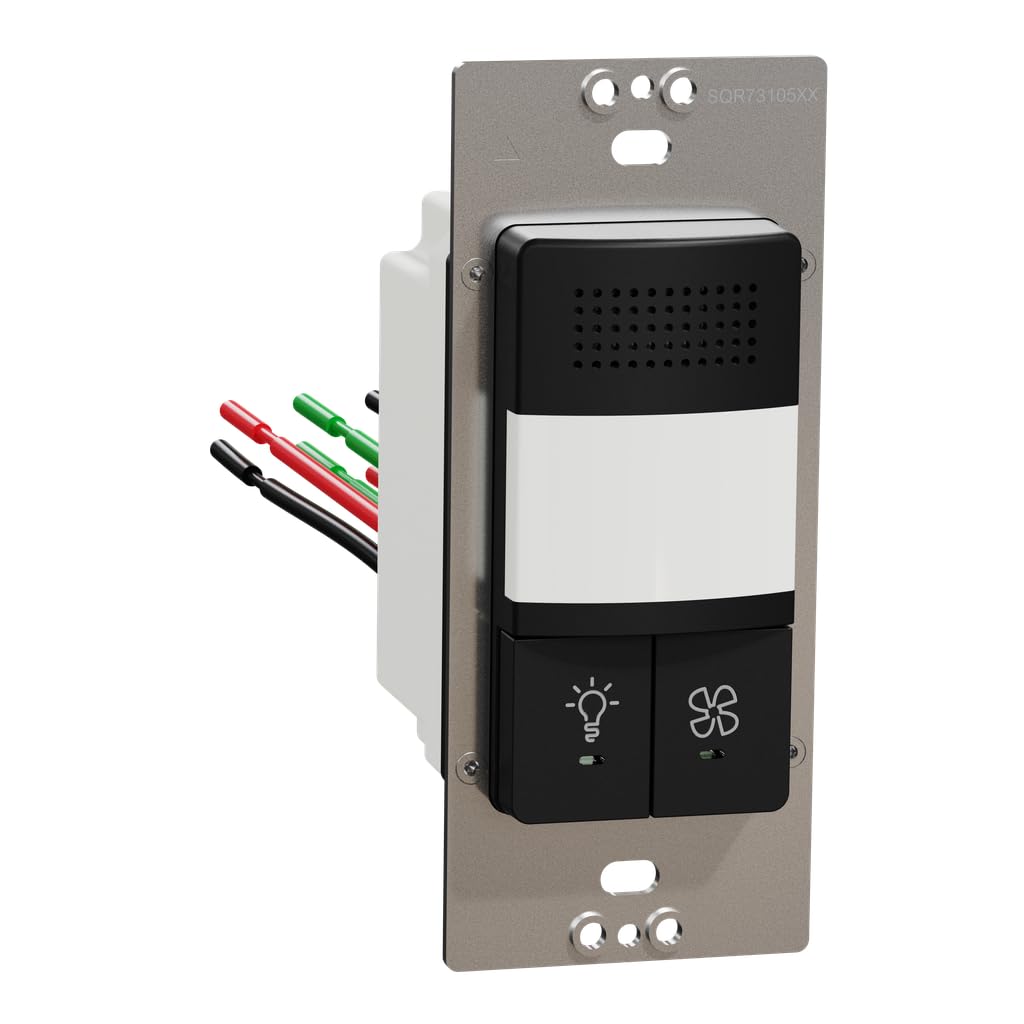

Square D by Schneider Electric Square D X Series Dual Humidity & PIR Motion Occupancy/Vacancy Sensor Light & Fan Control, 3 Amp Single-Pole/1-way, Matte Gray (SQR73105GY)
4.3 (144 items)
Limited Time SaleUS$30.46 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210096866 | Release Date | 2026/04/02 | List Price | US$20.30 | Model Number | 210096866 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Square D X Series 3 A 500W Single Pole Occupancy/Humidity Sensor Light & Fan Control with back wires, is an occupancy sensor, light switch, and fan control in a single, easy-to-clean matte finish. Automate lights to ON/OFF based on occupancy and available natural light to make saving energy easy. Enable manual control of the fan or lights at any time via two independent push buttons. Adjust timing for fans and lights in increments of 10, 20, or 30 minutes. Set relative humidity levels between 30 - 85%. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Enjoy a consistent look in your room or home with the full line of Square D X Series switches, dimmers, sensors, and receptacles.
- Combination moisture and motion sensor to automatically control bathroom exhaust fan and light; passive infrared (PIR) motion range up to 600 square feet and programable humidity level
- Relative humidity level can be set between 30 - 85%; adjust timing for fans and lights in increments of 10, 20, or 30 minutes
- Push button provides manual ON/OFF light switching at any time between occupancy detection (lights ON/OFF are fully controlled) and vacancy detection
- Two independent push buttons provide manual control of the fan or light and two configurable working parameters and one configurable light operation mode
- Supports 400W LED or 500W incandescent bulbs, single-pole/1-way wiring, and is CA title 24 and RoHS compliant
- Wattage: 500 watts
| UPC | 785901549260 |
|---|---|
| Color | Matte Gray |
| Model | SQR73105GY |
| Wattage | 500 watts |
| Terminal | Screw |
| Brand Name | Schneider Electric |
| Item Weight | 5.12 ounces |
| Switch Type | Push Button |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | Schneider Electric |
| Actuator Type | Push Button |
| Material Type | Plastic |
| Mounting Type | Flush Mount |
| Connector Type | Clamp |
| Control Method | Touch |
| Current Rating | 3 Amps |
| Item Type Name | Dual Humidity & PIR Motion Occupancy/Vacancy Sensor Light & Fan Control |
| Operation Mode | ON-OFF |
| Controller Type | Push Button |
| Item Dimensions | 2.56 x 1.69 x 4.06 inches |
| Number of Items | 1 |
| Contact Material | Copper/Brass |
| Operating Voltage | 120 Volts |
| Specification Met | cULus |
| Included Components | Sensor |
| Number of Positions | 2 |
| Warranty Description | 2 year manufacturer |
| Lower Temperature Rating | 32 Degrees Fahrenheit |
| Upper Temperature Rating | 104 Degrees Fahrenheit |
| International Protection Rating | IP20 |
